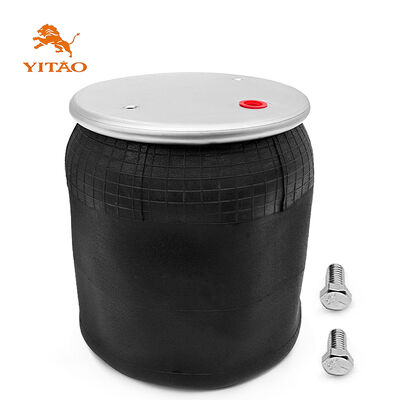

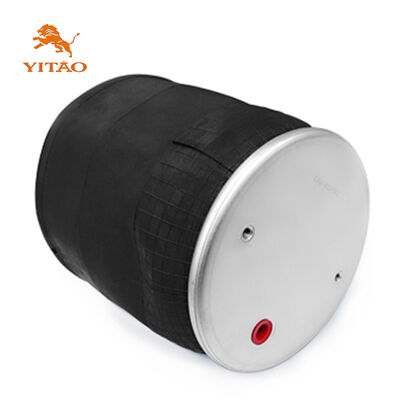

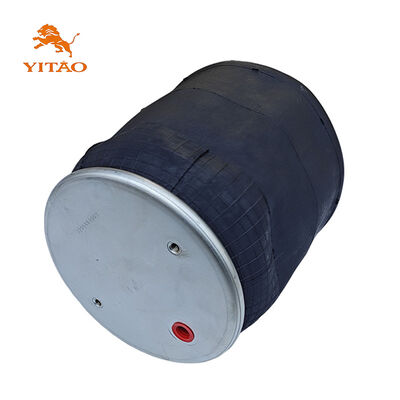

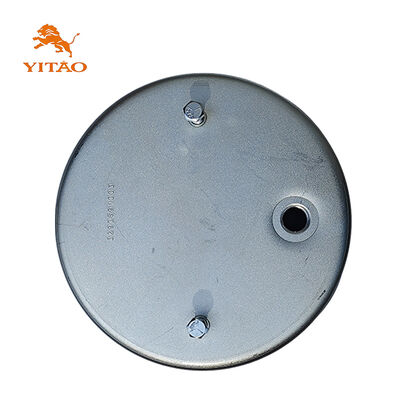

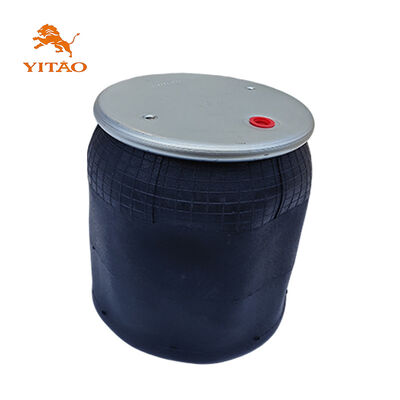

Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716

گواهی
چین Yitao Air Spring Group گواهینامه ها
چین Yitao Air Spring Group گواهینامه ها
چت IM آنلاین در حال حاضر

Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716

Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716

تصویر بزرگ :  Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716

جزئیات محصول:
محل منبع: چین
نام تجاری: YITAO
گواهی: IATF16949
شماره مدل: 1V 8864/0V15M-9
پرداخت:
مقدار حداقل تعداد سفارش: 50 عدد
قیمت: Negotiable in person
جزئیات بسته بندی: کارتن
زمان تحویل: 1 تا 30 روز
شرایط پرداخت: T/T
قابلیت ارائه: 5000 قطعه در ماه

Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716

شرح
شماره OE: W01-358-8864,1T15M-9,03-08716 شماره YITAO: 1V 8864
تایپ کنید: فنر هوای کامیون وضعیت: کاملا نو
گارانتی: 12 ماه زمان حمل و نقل معمولی: 3-10 روز
پیکربندی آب بندی: صفحه پوشش چین دار + صفحه آب بندی ولکانیزه مواد: لاستیک طبیعی
مواد پیستونی: پلاستیک بسته بندی: بسته بندی خنثی یا بسته بندی سفارشی

Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716



Manufactured to specifications matching Firestone W01-358-8864 and Peterbilt 03-08716, this air spring fully replaces the original equipment and provides a comfortable and stable ride.

Cross References
BrandReference NumbersNumbering Discrepancy
FirestoneW01-358-8864W013588864 / W01-358-8864 / W01 358 8864
Firestone1T15M-91T15M9 / 1T15M-9 / 1T15M 9
Peterbilt03-087160308716 / 03-08716 / 03 08716
Technical Specifications
SpecificationsParameters
Outer diameterφ255
Weight5.322 kg
Package Dimensions27*27*30 cm
Natural height623mm
Maximum height603mm
Minimum height195mm
Extended Height623mm
Compressed Height197mm
Top Plate Width231mm
Piston Width205mm
Product Drawings & Images
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 0

Images shown are for reference only. Actual product may vary slightly.

Factory Showcase
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 1
Factory Overlook
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 2
Quality Control Inspection
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 3
Manufacturing Equipment
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 4
R&D Center
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 5
Assembly and Forming
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 6
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions

IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.

WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.

I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
